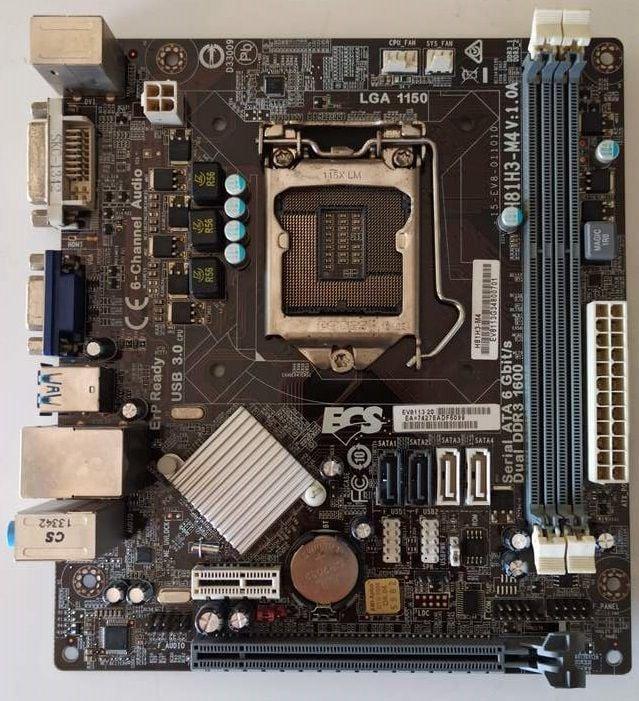

ECS H81H3-M4 İntel H81 1600MHz DDR3 LGA1150 mATX Anakart (h81h)

DMI 5.0GT/s

Solid Capacitor for CPU side

Please refer to CPU support list for details

Intel^® H81 Express Chipset

Dual-channelDDR3 Memory architecture

Supports DDR3 1600/1333 non-ECC, Un-buffered SDRAM Memory

Note:Please refer to the latest Memory support list for details

1 X PCI Express X16 Gen 2.0 slot(s)

1 X PCI Express X1 Gen 2.0 slot(s)

Support by H81 Express Chipset

2 X Serial ATAIII 6Gb/s

6-Channel HD audio CODEC

( Colay VIA VT1705 or Realtek ALC662 6-Channel HD audio)

Realtek 8111G Gigabit Fast Ethernet Controller

Wake-On-LAN

Support by H81 Express Chipset

2 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s

6 X USB2.0 port(s) Up to 480 Mb/s

1 X PS/2 Keyboard & PS/2 mouse connectors

1 X Audio port (Line Out/Line In/Mic In)

1 X RJ-45 port

1 X HDMI™ port(s)

1 X DVI-I port(s) (optional)

1 X D-Sub (VGA) port(s)

2 X USB 3.2 Gen 1x1 Type A port(s)

2 X USB2.0 port(s)

1 X 24-pin ATX Power Supply connector

1 X 4-pin 12V Power connector

1 X 4-pin CPU_FAN connector

1 X 3-pin SYS_FAN connector

1 X Speaker header

2 X USB 2.0 header

2 X SATA III 6Gb/s connector(s)

1 X CLR_CMOS header

1 X Serial port header (COM)

AMI BIOS with 64 MB SPI Flash ROM

ACPI & DMI

Dual Display

Support GUI UEFI BIOS

Multi-Language BIOS

mATX Form Factor

190mm x 170mm

CE/FCC Certification

ErP/EuP Certification

WHQL Certification

WHCK Certification

ECS Intelligent EZ Utility : eDLU, eSF

2 X SATA II 3Gb/s connector(s)

Microsoft Windows 8 Certified

Free Bundle: CyberLink Media Suite

Supports M.I.B III Utility

Free Bundle: CyberLink Media Suite

Supports New 4th & 4th gen Intel^® Core™ family, Pentium, Celeron series processors in LGA1150 socket

2 X Serial ATAII 3Gb/s

2 X 240-pin DDR3 DIMM socket

Windows 7 32-bit

Windows 7 64-bit

Support up to 16 GB*

Windows 8 32-bit

Windows 8 64-bit
